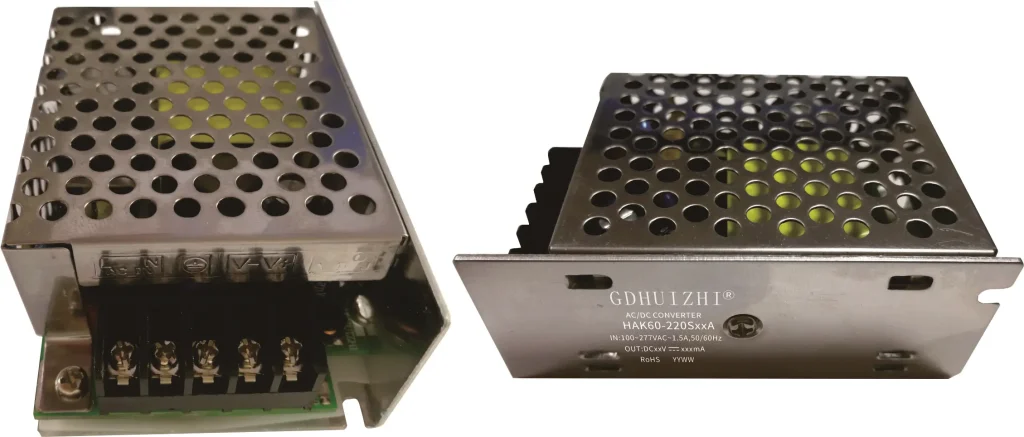

HAK60_S-A
This product series supports a wide range of global input voltages, is suitable for both AC and DC applications, and features low ripple, low power consumption, and high efficiency.
1. Wide input voltage range, isolated regulated single-channel output
2. Isolation voltage: 4000 VAC, power: 60 W
3. High-Voltage Input
4. Output short-circuit, overcurrent, overvoltage, and overtemperature protection
HAK60_S-A series
| Model No. | Power(W) | Isolation Vol.(VAC) | Input Voltage(VAC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| HAK60-220S12A | 60 | 4000 | 85-305 | 12 | 86.00*59.00*34.00 | DIP |  |
| HAK60-220S15A | 60 | 4000 | 85-305 | 15 | 86.00*59.00*34.00 | DIP | |
| HAK60-220S24A | 60 | 4000 | 85-305 | 24 | 86.00*59.00*34.00 | DIP | |
