DC-DC Driver Power Module
DC-DC power modules designed specifically for IGBT/SiC drivers, featuring an asymmetric voltage output configuration to minimize drive losses in IGBTs and SiCs as much as possible. It also includes output short-circuit protection and self-recovery capabilities.
1. Isolated type power module
2. SIP (Single In-line Package)
3. Operating temperature range: -40 to +105°C
4. Suitable for general-purpose inverters, AC servo drive systems, arc welders, uninterruptible power supplies (UPS), etc.
1 IGBT Driver Power Supply
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| QAxx | - | 3000 | 12、15、24 | +9/-9、+15/-8、+15/-8.7 | 19.50*9.80*12.50 | SIP | |
| QAxx1 | - | 3000 | 12、15、24 | ±5、-8 | 19.50*9.80*12.50 | SIP | |
| QA15115R2 | - | 3500 | 15 | +15/-2.5 | 19.50*9.80*12.50 | SIP | |
| QA15115R3 | - | 1500 | 15 | +15/-2.5 | 19.50*9.80*12.50 | SIP | |
| QA152D | - | 4000 | 15 | +15/-9 | 31.60*20.30*10.16 | DIP | |
| MGJ2DxxSC | - | 3000 | 5、12、15、24 | +15/-3、+15/-5、+15/-15、+18/-2.5、+20/-5 | 19.50*9.80*12.50 | SIP |
2 SiC Driver Modular Power Supply
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| QAxCx | - | 3500 | 12、15、24 | +9/-9、+15/-8、+15/-8.7 | 19.50*9.80*12.50 | SIP | |

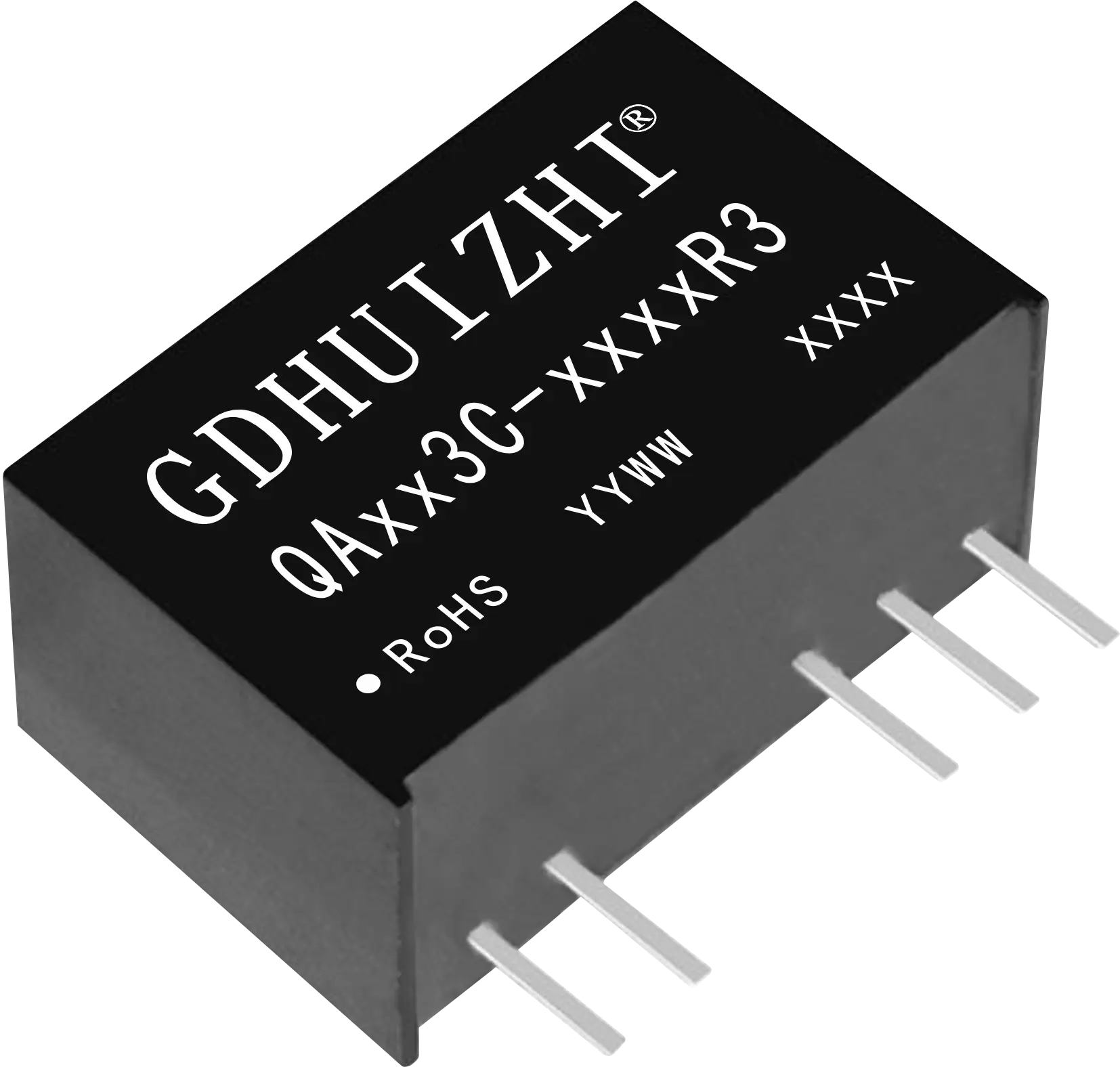

| QAxx3C-R3 | - | 3000 | 5、12、15、24 | +15/-4、+15/-5、+15/-8.7、+18/-3、+20/-5 | 19.50*9.80*12.50 | SIP | |
| QAxx3-R3 | - | 5000 | 5、12、15、24 | +15/-8.7、+15/-9 | 19.50*9.80*12.50 | SIP | |
| QAxx3HCD2-R3 | - | 5000 | 12、15、24 | +15/-4、+18/-3、+20/-5 | 31.70*20.30*12.65mm | DIP | |
| QAxxHC-R3 | - | 5000 | 12、15、24 | +15/-4、+20/-5 | 27.40*9.50*12.00 | SIP | |
| QA151M | - | 3500 | 15 | +15/-5 | 19.65*6.00*10.16 | SIP |
