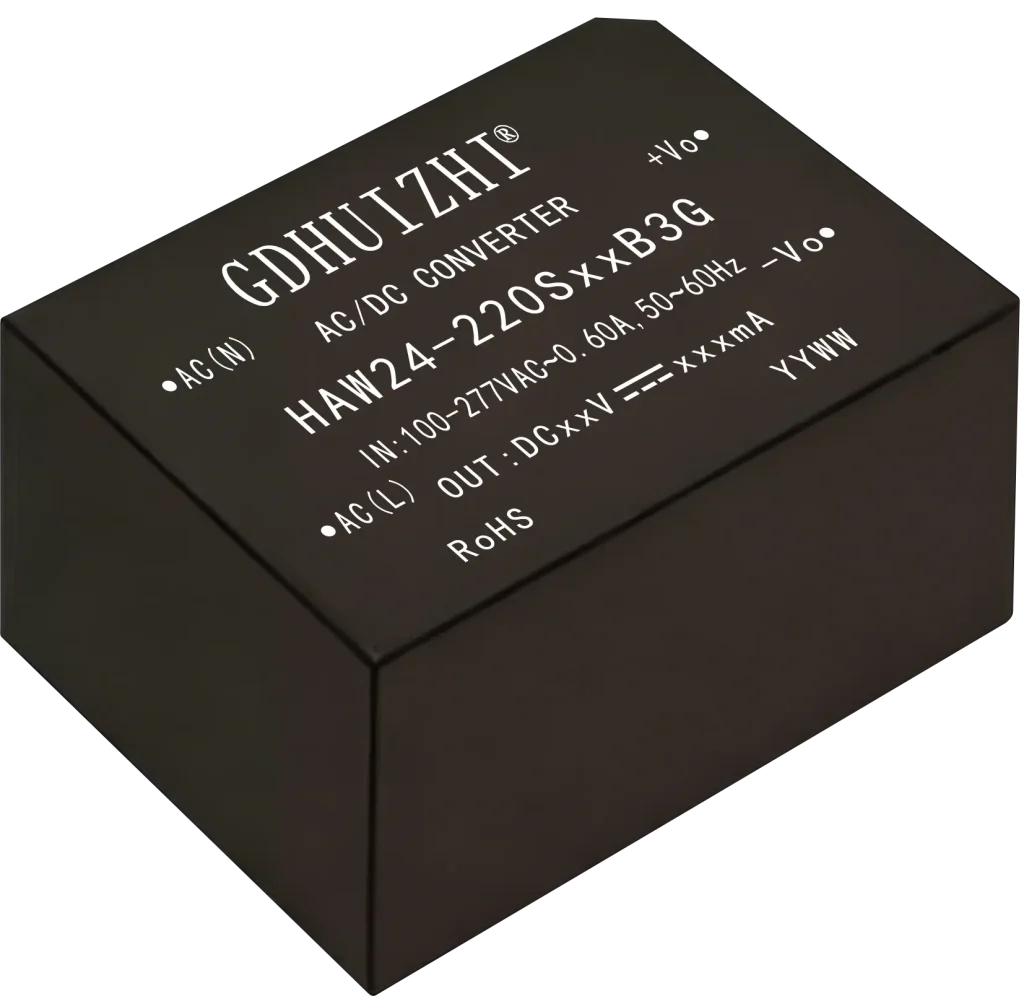

HAW24_S-B3G
This product series supports a wide range of global input voltages, is suitable for both AC and DC applications, and features low ripple, low power consumption, and high efficiency.
1. Wide input voltage range, isolated regulated single-channel output
2. Isolation voltage: 3000 VAC, power: 24 W
3. DIP package, plastic housing
4. Output short-circuit, overcurrent, overvoltage, and overtemperature protection
HAW24_S-B3G series
| Model No. | Power(W) | Isolation Vol.(VAC) | Input Voltage(VAC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| HAW24-220S09B3G | 24 | 3000 | 85-305 | 9 | 39.00*25.00*22.00 | DIP |  |
| HAW24-220S12B3G | 24 | 3000 | 85-305 | 12 | 39.00*25.00*22.00 | DIP | |
| HAW24-220S15B3G | 24 | 3000 | 85-305 | 15 | 39.00*25.00*22.00 | DIP | |
| HAW24-220S24B3G | 24 | 3000 | 85-305 | 24 | 39.00*25.00*22.00 | DIP | |
