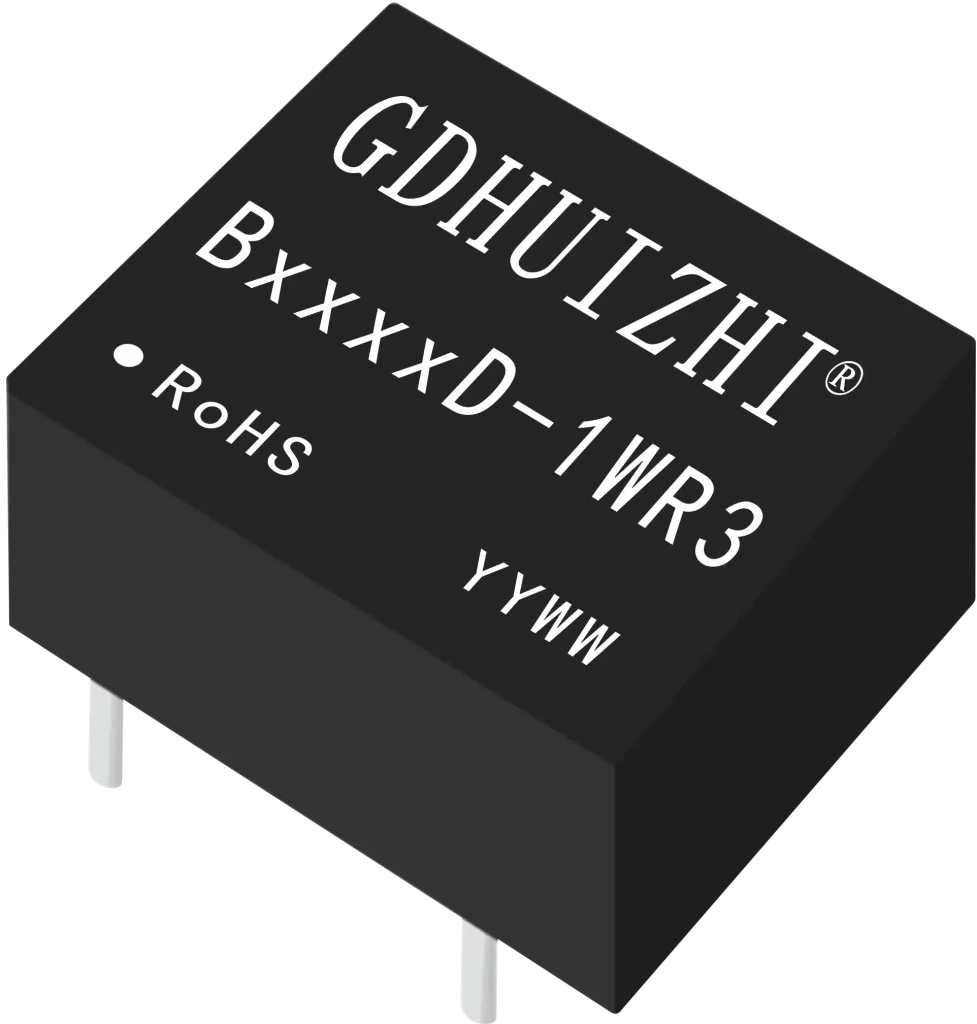

B_D-1WR3
This product series is specifically designed for applications in on-board power supply systems that require a voltage isolated from the input power source.
1. Fixed-voltage input, isolated unregulated single outputs
2. Isolation voltage: 1500 VDC, power: 1 W
3. Compact SIP package, plastic housing
4. Output short-circuit protection, automatic recovery
B_D-1WR3 series
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| B0303D-1WR3 | 1 | 1500 | 3.3（2.97-3.63） | 3.3 | 12.70*8.20*10.16 | SIP |  |
| B0305D-1WR3 | 1 | 1500 | 3.3（2.97-3.63） | 5 | 12.70*8.20*10.16 | SIP | |
| B0312D-1WR3 | 1 | 1500 | 3.3（2.97-3.63） | 12 | 12.70*8.20*10.16 | SIP | |
| B0503D-1WR3 | 1 | 1500 | 5（4.5-5.5） | 3.3 | 12.70*8.20*10.16 | SIP | |
| B0505D-1WR3 | 1 | 1500 | 5（4.5-5.5） | 5 | 12.70*8.20*10.16 | SIP | |
| B0509D-1WR3 | 1 | 1500 | 5（4.5-5.5） | 9 | 12.70*8.20*10.16 | SIP | |
| B0512D-1WR3 | 1 | 1500 | 5（4.5-5.5） | 12 | 12.70*8.20*10.16 | SIP | |
| B0515D-1WR3 | 1 | 1500 | 5（4.5-5.5） | 15 | 12.70*8.20*10.16 | SIP | |
| B0524D-1WR3 | 1 | 1500 | 5（4.5-5.5） | 24 | 12.70*8.20*10.16 | SIP | |
| B1203D-1WR3 | 1 | 1500 | 12（10.8-13.2） | 3.3 | 12.70*8.20*10.16 | SIP | |
| B1205D-1WR3 | 1 | 1500 | 12（10.8-13.2） | 5 | 12.70*8.20*10.16 | SIP | |
| B1209D-1WR3 | 1 | 1500 | 12（10.8-13.2） | 9 | 12.70*8.20*10.16 | SIP | |
| B1212D-1WR3 | 1 | 1500 | 12（10.8-13.2） | 12 | 12.70*8.20*10.16 | SIP | |
| B1215D-1WR3 | 1 | 1500 | 12（10.8-13.2） | 15 | 12.70*8.20*10.16 | SIP | |
| B1224D-1WR3 | 1 | 1500 | 12（10.8-13.2） | 24 | 12.70*8.20*10.16 | SIP | |
| B1503D-1WR3 | 1 | 1500 | 15（13.5-16.5） | 3.3 | 12.70*8.20*10.16 | SIP | |
| B1505D-1WR3 | 1 | 1500 | 15（13.5-16.5） | 5 | 12.70*8.20*10.16 | SIP | |
| B1509D-1WR3 | 1 | 1500 | 15（13.5-16.5） | 9 | 12.70*8.20*10.16 | SIP | |
| B1512D-1WR3 | 1 | 1500 | 15（13.5-16.5） | 12 | 12.70*8.20*10.16 | SIP | |
| B1515D-1WR3 | 1 | 1500 | 15（13.5-16.5） | 15 | 12.70*8.20*10.16 | SIP | |
| B1524D-1WR3 | 1 | 1500 | 15（13.5-16.5） | 24 | 12.70*8.20*10.16 | SIP | |
| B2403D-1WR3 | 1 | 1500 | 24（21.6-26.4） | 3.3 | 12.70*8.20*10.16 | SIP | |
| B2405D-1WR3 | 1 | 1500 | 24（21.6-26.4） | 5 | 12.70*8.20*10.16 | SIP | |
| B2409D-1WR3 | 1 | 1500 | 24（21.6-26.4） | 9 | 12.70*8.20*10.16 | SIP | |
| B2412D-1WR3 | 1 | 1500 | 24（21.6-26.4） | 12 | 12.70*8.20*10.16 | SIP | |
| B2415D-1WR3 | 1 | 1500 | 24（21.6-26.4） | 15 | 12.70*8.20*10.16 | SIP | |
| B2424D-1WR3 | 1 | 1500 | 24（21.6-26.4） | 24 | 12.70*8.20*10.16 | SIP | |
