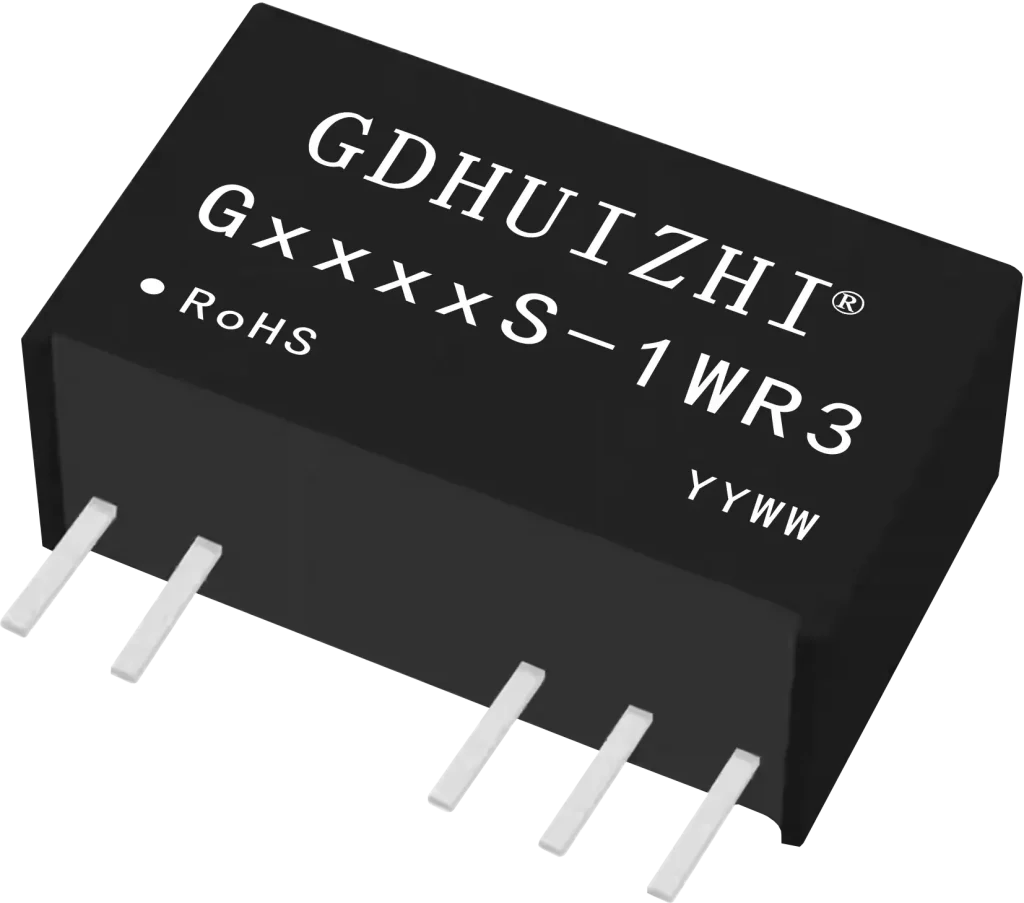

G_S-1WR3
This product series is specifically designed for applications in on-board power supply systems that require a voltage isolated from the input power source.
1. Fixed-voltage input, isolated unregulated dual outputs
2. Isolation voltage: 6000 VDC, power: 1 W
3. Compact SIP package, plastic housing
4. Output short-circuit protection, automatic recovery
G_S-1WR3 series
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| G0303S-1WR3 | 1 | 6000 | 3.3（2.97-3.63） | ±3.3 | 19.50*9.80*12.50 | SIP |  |
| G0305S-1WR3 | 1 | 6000 | 3.3（2.97-3.63） | ±5 | 19.50*9.80*12.50 | SIP | |
| G0309S-1WR3 | 1 | 6000 | 3.3（2.97-3.63） | ±9 | 19.50*9.80*12.50 | SIP | |
| G0312S-1WR3 | 1 | 6000 | 3.3（2.97-3.63） | ±12 | 19.50*9.80*12.50 | SIP | |
| G0315S-1WR3 | 1 | 6000 | 3.3（2.97-3.63） | ±15 | 19.50*9.80*12.50 | SIP | |
| G0324S-1WR3 | 1 | 6000 | 3.3（2.97-3.63） | ±24 | 19.50*9.80*12.50 | SIP | |
| G0503S-1WR3 | 1 | 6000 | 5（4.5-5.5） | ±3.3 | 19.50*9.80*12.50 | SIP | |
| G0505S-1WR3 | 1 | 6000 | 5（4.5-5.5） | ±5 | 19.50*9.80*12.50 | SIP | |
| G0509S-1WR3 | 1 | 6000 | 5（4.5-5.5） | ±9 | 19.50*9.80*12.50 | SIP | |
| G0512S-1WR3 | 1 | 6000 | 5（4.5-5.5） | ±12 | 19.50*9.80*12.50 | SIP | |
| G0515S-1WR3 | 1 | 6000 | 5（4.5-5.5） | ±15 | 19.50*9.80*12.50 | SIP | |
| G0524S-1WR3 | 1 | 6000 | 5（4.5-5.5） | ±24 | 19.50*9.80*12.50 | SIP | |
| G0903S-1WR3 | 1 | 6000 | 9（8.1-9.9） | ±3.3 | 19.50*9.80*12.50 | SIP | |
| G0905S-1WR3 | 1 | 6000 | 9（8.1-9.9） | ±5 | 19.50*9.80*12.50 | SIP | |
| G0909S-1WR3 | 1 | 6000 | 9（8.1-9.9） | ±9 | 19.50*9.80*12.50 | SIP | |
| G0912S-1WR3 | 1 | 6000 | 9（8.1-9.9） | ±12 | 19.50*9.80*12.50 | SIP | |
| G0915S-1WR3 | 1 | 6000 | 9（8.1-9.9） | ±15 | 19.50*9.80*12.50 | SIP | |
| G0924S-1WR3 | 1 | 6000 | 9（8.1-9.9） | ±24 | 19.50*9.80*12.50 | SIP | |
| G1203S-1WR3 | 1 | 6000 | 12（10.8-13.2） | ±3.3 | 19.50*9.80*12.50 | SIP | |
| G1205S-1WR3 | 1 | 6000 | 12（10.8-13.2） | ±5 | 19.50*9.80*12.50 | SIP | |
| G1209S-1WR3 | 1 | 6000 | 12（10.8-13.2） | ±9 | 19.50*9.80*12.50 | SIP | |
| G1212S-1WR3 | 1 | 6000 | 12（10.8-13.2） | ±12 | 19.50*9.80*12.50 | SIP | |
| G1215S-1WR3 | 1 | 6000 | 12（10.8-13.2） | ±15 | 19.50*9.80*12.50 | SIP | |
| G1224S-1WR3 | 1 | 6000 | 12（10.8-13.2） | ±24 | 19.50*9.80*12.50 | SIP | |
| G1503S-1WR3 | 1 | 6000 | 15（13.5-16.5） | ±3.3 | 19.50*9.80*12.50 | SIP | |
| G1505S-1WR3 | 1 | 6000 | 15（13.5-16.5） | ±5 | 19.50*9.80*12.50 | SIP | |
| G1509S-1WR3 | 1 | 6000 | 15（13.5-16.5） | ±9 | 19.50*9.80*12.50 | SIP | |
| G1512S-1WR3 | 1 | 6000 | 15（13.5-16.5） | ±12 | 19.50*9.80*12.50 | SIP | |
| G1515S-1WR3 | 1 | 6000 | 15（13.5-16.5） | ±15 | 19.50*9.80*12.50 | SIP | |
| G1524S-1WR3 | 1 | 6000 | 15（13.5-16.5） | ±24 | 19.50*9.80*12.50 | SIP | |
| G2403S-1WR3 | 1 | 6000 | 24（21.6-26.4） | ±3.3 | 19.50*9.80*12.50 | SIP | |
| G2405S-1WR3 | 1 | 6000 | 24（21.6-26.4） | ±5 | 19.50*9.80*12.50 | SIP | |
| G2409S-1WR3 | 1 | 6000 | 24（21.6-26.4） | ±9 | 19.50*9.80*12.50 | SIP | |
| G2412S-1WR3 | 1 | 6000 | 24（21.6-26.4） | ±12 | 19.50*9.80*12.50 | SIP | |
| G2415S-1WR3 | 1 | 6000 | 24（21.6-26.4） | ±15 | 19.50*9.80*12.50 | SIP | |
| G2424S-1WR3 | 1 | 6000 | 24（21.6-26.4） | ±24 | 19.50*9.80*12.50 | SIP | |
