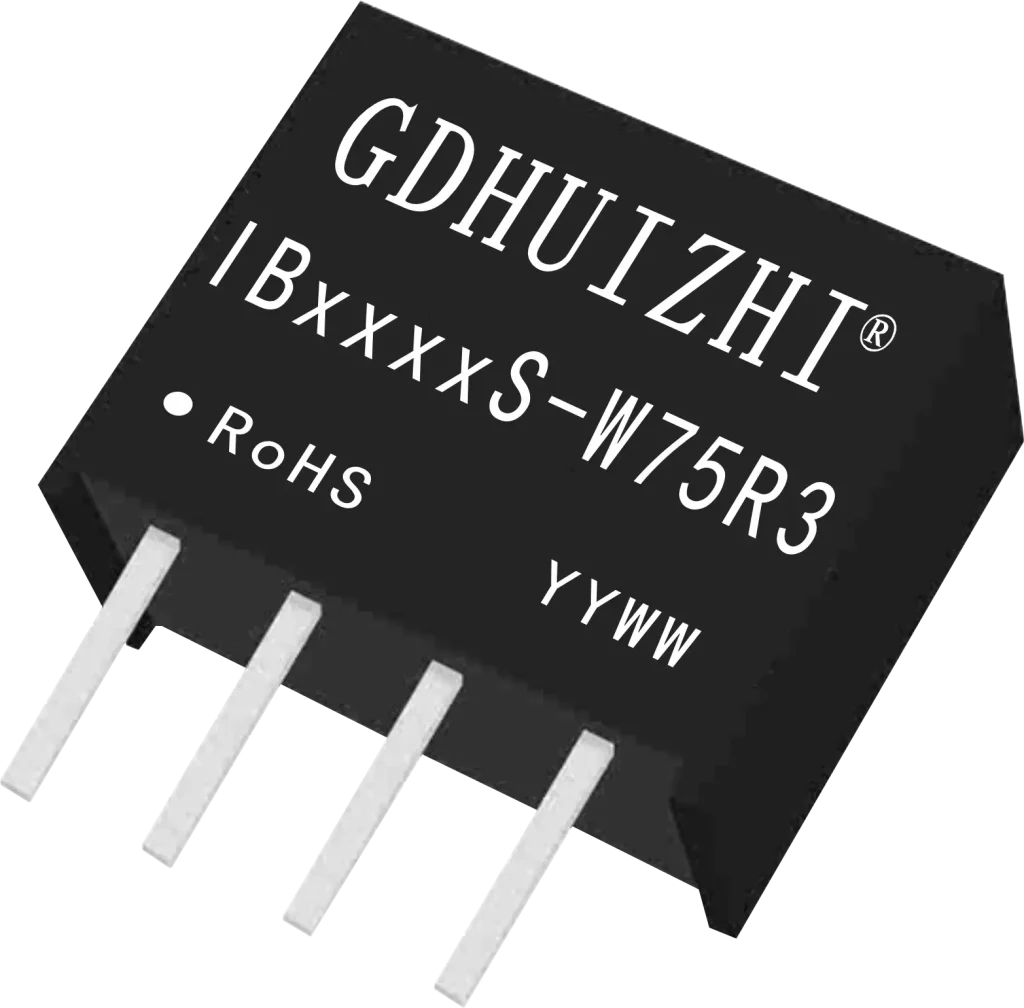

IB_S-W75R3
This product series is specifically designed for applications in on-board power supply systems that require a voltage isolated from the input power source.
1. Fixed-voltage input, isolated regulated-voltage single outputs
2. Isolation voltage: 1500 VDC, power: 0.75 W
3. Compact SIP package, plastic housing
4. Output short-circuit protection, automatic recovery
IB_S-W75R3 series
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| IB0505S-W75R3 | 0.75 | 1500 | 5（4.75-5.25） | 5 | 11.50*6.00*10.00 | SIP |  |
| IB0509S-W75R3 | 0.75 | 1500 | 5（4.75-5.25） | 9 | 11.50*6.00*10.00 | SIP | |
| IB0512S-W75R3 | 0.75 | 1500 | 5（4.75-5.25） | 12 | 11.50*6.00*10.00 | SIP | |
| IB1205S-W75R3 | 0.75 | 1500 | 12（11.4-12.6） | 5 | 11.50*6.00*10.00 | SIP | |
| IB1209S-W75R3 | 0.75 | 1500 | 12（11.4-12.6） | 9 | 11.50*6.00*10.00 | SIP | |
| IB1212S-W75R3 | 0.75 | 1500 | 12（11.4-12.6） | 12 | 11.50*6.00*10.00 | SIP | |
| IB2405S-W75R3 | 0.75 | 1500 | 24（22.8-25.2） | 5 | 11.50*6.00*10.00 | SIP | |
| IB2409S-W75R3 | 0.75 | 1500 | 24（22.8-25.2） | 9 | 11.50*6.00*10.00 | SIP | |
| IB2412S-W75R3 | 0.75 | 1500 | 24（22.8-25.2） | 12 | 11.50*6.00*10.00 | SIP | |
