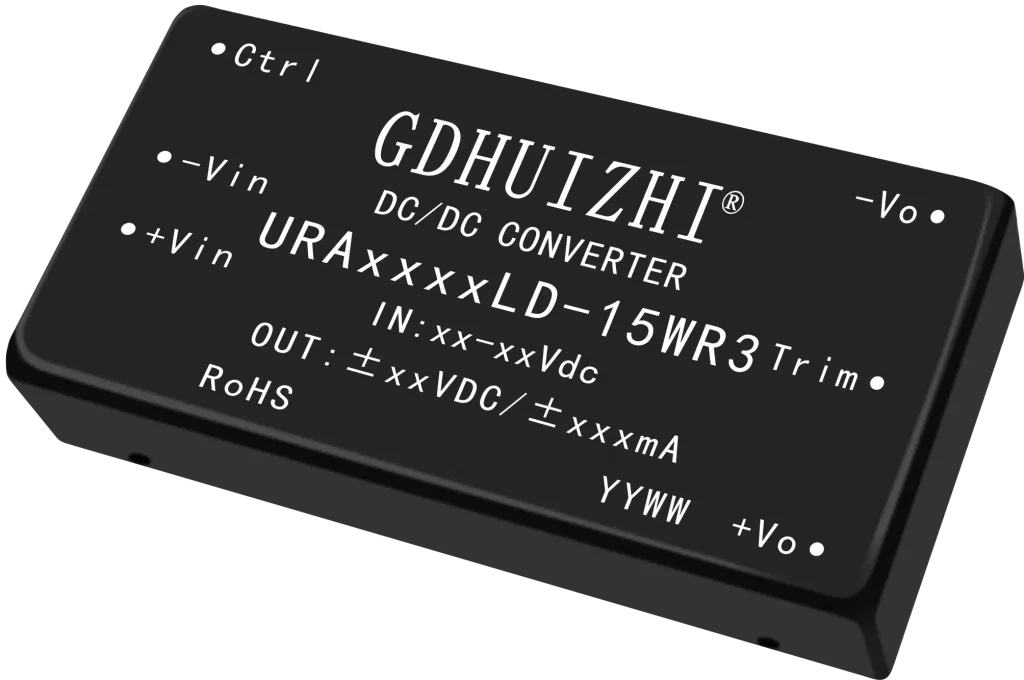

URA_LD-15WR3
This series of product is widely used in various industries, such as Industrial Control, Power, Instrumentation, Medical Electronics, Rail Transportation, and Telecommunications，etc.
1. Wide input voltage range, isolated regulated dual output
2. Isolation voltage: 1500 VDC, power: 15 W
3. DIP package, metal housing
4. Input undervoltage, output short-circuit, overcurrent, and overvoltage protection.
URA_LD-15WR3 series
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| URA2405LD-15WR3 | 15 | 1500 | 24（9-36） | ±5 | 50.80*25.40*11.80 | DIP |  |
| URA2409LD-15WR3 | 15 | 1500 | 24（9-36） | ±9 | 50.80*25.40*11.80 | DIP | |
| URA2412LD-15WR3 | 15 | 1500 | 24（9-36） | ±12 | 50.80*25.40*11.80 | DIP | |
| URA2415LD-15WR3 | 15 | 1500 | 24（9-36） | ±15 | 50.80*25.40*11.80 | DIP | |
| URA2424LD-15WR3 | 15 | 1500 | 24（9-36） | ±24 | 50.80*25.40*11.80 | DIP | |
| URA4805LD-15WR3 | 15 | 1500 | 48（18-75） | ±5 | 50.80*25.40*11.80 | DIP | |
| URA4809LD-15WR3 | 15 | 1500 | 48（18-75） | ±9 | 50.80*25.40*11.80 | DIP | |
| URA4812LD-15WR3 | 15 | 1500 | 48（18-75） | ±12 | 50.80*25.40*11.80 | DIP | |
| URA4815LD-15WR3 | 15 | 1500 | 48（18-75） | ±15 | 50.80*25.40*11.80 | DIP | |
| URA4824LD-15WR3 | 15 | 1500 | 48（18-75） | ±24 | 50.80*25.40*11.80 | DIP | |
| URA1D05LD-15WR3 | 15 | 1500 | 110（40-160） | ±5 | 50.80*25.40*11.80 | DIP | |
| URA1D09LD-15WR3 | 15 | 1500 | 110（40-160） | ±9 | 50.80*25.40*11.80 | DIP | |
| URA1D12LD-15WR3 | 15 | 1500 | 110（40-160） | ±12 | 50.80*25.40*11.80 | DIP | |
| URA1D15LD-15WR3 | 15 | 1500 | 110（40-160） | ±15 | 50.80*25.40*11.80 | DIP | |
| URA1D24LD-15WR3 | 15 | 1500 | 110（40-160） | ±24 | 50.80*25.40*11.80 | DIP | |
