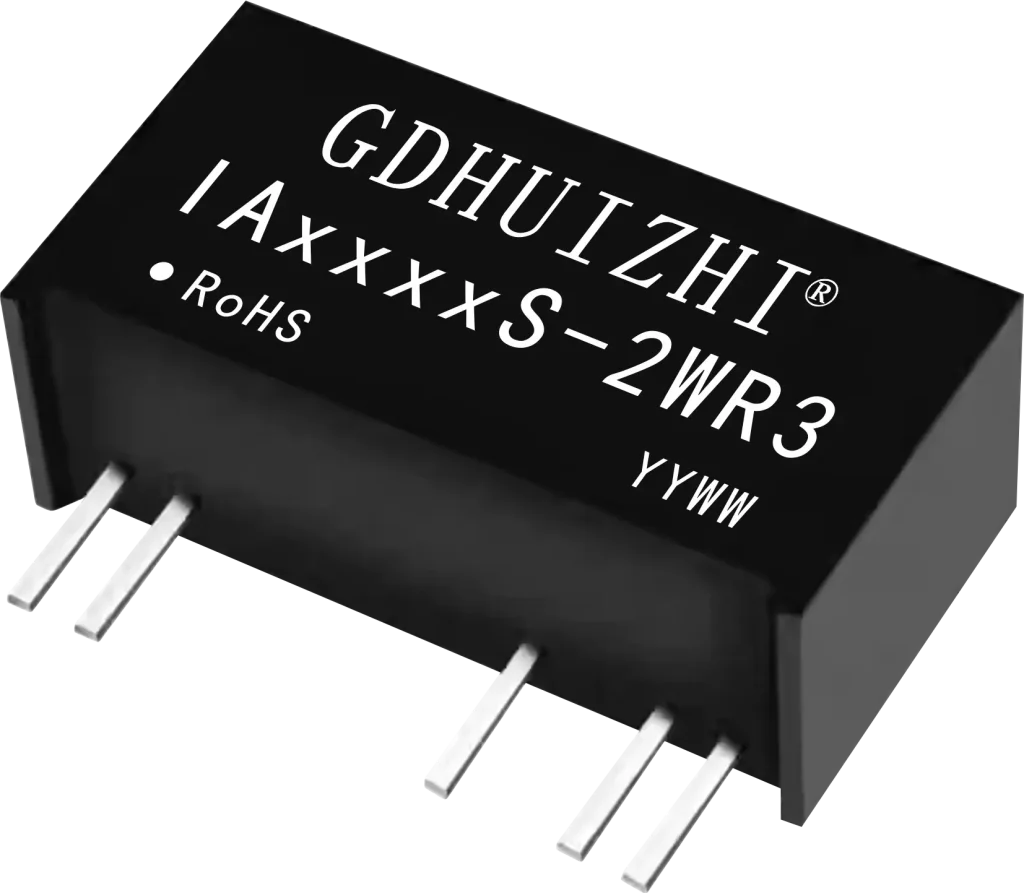

IA_S-2WR3
This product series is specifically designed for applications in on-board power supply systems that require a voltage isolated from the input power source.
1. Fixed-voltage input, isolated regulated-voltage dual outputs
2. Isolation voltage: 1500 VDC, power: 2 W
3. Compact SIP package, plastic housing
4. Output short-circuit protection, automatic recovery
IA_S-2WR3 series
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| IA0503S-2WR3 | 2 | 1500 | 5（4.75-5.25） | ±3.3 | 27.00*9.50*12.00 | SIP |  |
| IA0505S-2WR3 | 2 | 1500 | 5（4.75-5.25） | ±5 | 27.00*9.50*12.00 | SIP | |
| IA0509S-2WR3 | 2 | 1500 | 5（4.75-5.25） | ±9 | 27.00*9.50*12.00 | SIP | |
| IA0512S-2WR3 | 2 | 1500 | 5（4.75-5.25） | ±12 | 27.00*9.50*12.00 | SIP | |
| IA0515S-2WR3 | 2 | 1500 | 5（4.75-5.25） | ±15 | 27.00*9.50*12.00 | SIP | |
| IA0524S-2WR3 | 2 | 1500 | 5（4.75-5.25） | ±24 | 27.00*9.50*12.00 | SIP | |
| IA0903S-2WR3 | 2 | 1500 | 9（8.55-9.45） | ±3.3 | 27.00*9.50*12.00 | SIP | |
| IA0905S-2WR3 | 2 | 1500 | 9（8.55-9.45） | ±5 | 27.00*9.50*12.00 | SIP | |
| IA0909S-2WR3 | 2 | 1500 | 9（8.55-9.45） | ±9 | 27.00*9.50*12.00 | SIP | |
| IA0912S-2WR3 | 2 | 1500 | 9（8.55-9.45） | ±12 | 27.00*9.50*12.00 | SIP | |
| IA0915S-2WR3 | 2 | 1500 | 9（8.55-9.45） | ±15 | 27.00*9.50*12.00 | SIP | |
| IA0924S-2WR3 | 2 | 1500 | 9（8.55-9.45） | ±24 | 27.00*9.50*12.00 | SIP | |
| IA1203S-2WR3 | 2 | 1500 | 12（11.4-12.6） | ±3.3 | 27.00*9.50*12.00 | SIP | |
| IA1205S-2WR3 | 2 | 1500 | 12（11.4-12.6） | ±5 | 27.00*9.50*12.00 | SIP | |
| IA1209S-2WR3 | 2 | 1500 | 12（11.4-12.6） | ±9 | 27.00*9.50*12.00 | SIP | |
| IA1212S-2WR3 | 2 | 1500 | 12（11.4-12.6） | ±12 | 27.00*9.50*12.00 | SIP | |
| IA1215S-2WR3 | 2 | 1500 | 12（11.4-12.6） | ±15 | 27.00*9.50*12.00 | SIP | |
| IA1224S-2WR3 | 2 | 1500 | 12（11.4-12.6） | ±24 | 27.00*9.50*12.00 | SIP | |
| IA1503S-2WR3 | 2 | 1500 | 15（14.25-15.75） | ±3.3 | 27.00*9.50*12.00 | SIP | |
| IA1505S-2WR3 | 2 | 1500 | 15（14.25-15.75） | ±5 | 27.00*9.50*12.00 | SIP | |
| IA1509S-2WR3 | 2 | 1500 | 15（14.25-15.75） | ±9 | 27.00*9.50*12.00 | SIP | |
| IA1512S-2WR3 | 2 | 1500 | 15（14.25-15.75） | ±12 | 27.00*9.50*12.00 | SIP | |
| IA1515S-2WR3 | 2 | 1500 | 15（14.25-15.75） | ±15 | 27.00*9.50*12.00 | SIP | |
| IA1524S-2WR3 | 2 | 1500 | 15（14.25-15.75） | ±24 | 27.00*9.50*12.00 | SIP | |
| IA2405S-2WR3 | 2 | 1500 | 24（22.8-25.2） | ±5 | 27.00*9.50*12.00 | SIP | |
| IA2409S-2WR3 | 2 | 1500 | 24（22.8-25.2） | ±9 | 27.00*9.50*12.00 | SIP | |
| IA2412S-2WR3 | 2 | 1500 | 24（22.8-25.2） | ±12 | 27.00*9.50*12.00 | SIP | |
| IA2415S-2WR3 | 2 | 1500 | 24（22.8-25.2） | ±15 | 27.00*9.50*12.00 | SIP | |
| IA2424S-2WR3 | 2 | 1500 | 24（22.8-25.2） | ±24 | 27.00*9.50*12.00 | SIP | |
