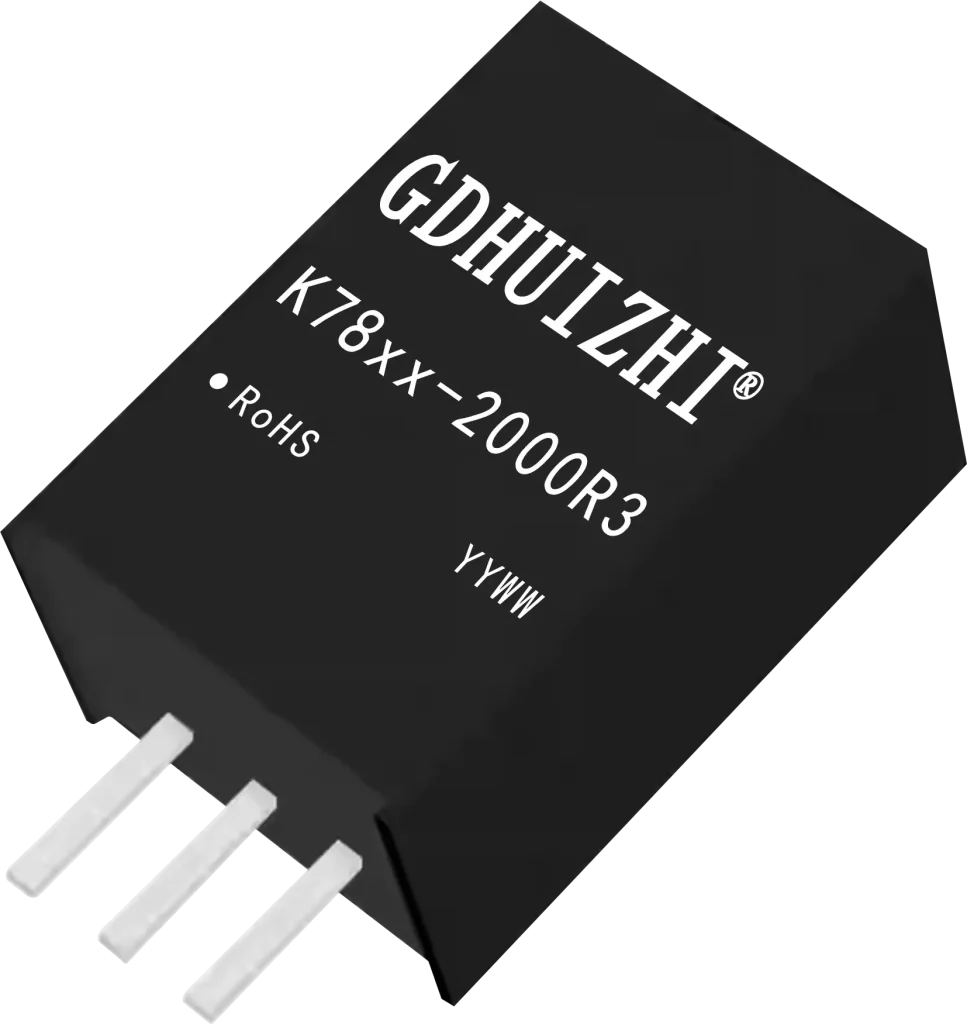

K78xx-2000R3
This series of high-efficiency switching regulators is an ideal replacement for the LM78xx series of three-terminal linear regulators.
1. Wide input voltage range, non-isolated regulated single output
2. Operating temperature range: -40°C to +80°C
3. SIP package, flame-retardant plastic housing
4. Output short-circuit protection
K78xx-2000R3 series
| Model No. | Power(W) | Isolation Vol.(VDC) | Input Voltage(VDC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| K78X2-2000R3 | - | - | 24（4.5-28） | 1.8 | 11.60*9.00*17.50 | SIP |  |
| K7802-2000R3 | - | - | 24（4.5-36） | 2.5 | 11.60*9.00*17.50 | SIP | |
| K7803-2000R3 | - | - | 24（6-36） | 3.3 | 11.60*9.00*17.50 | SIP | |
| K7805-2000R3 | - | - | 24（8-36） | 5 | 11.60*9.00*17.50 | SIP | |
| K78X6-2000R3 | - | - | 24（10-36） | 6.5 | 11.60*9.00*17.50 | SIP | |
| K7809-2000R3 | - | - | 24（13-36） | 9 | 11.60*9.00*17.50 | SIP | |
| K7812-2000R3 | - | - | 24（16-36） | 12 | 11.60*9.00*17.50 | SIP | |
| K7815-2000R3 | - | - | 24（18-36） | 15 | 11.60*9.00*17.50 | SIP | |
