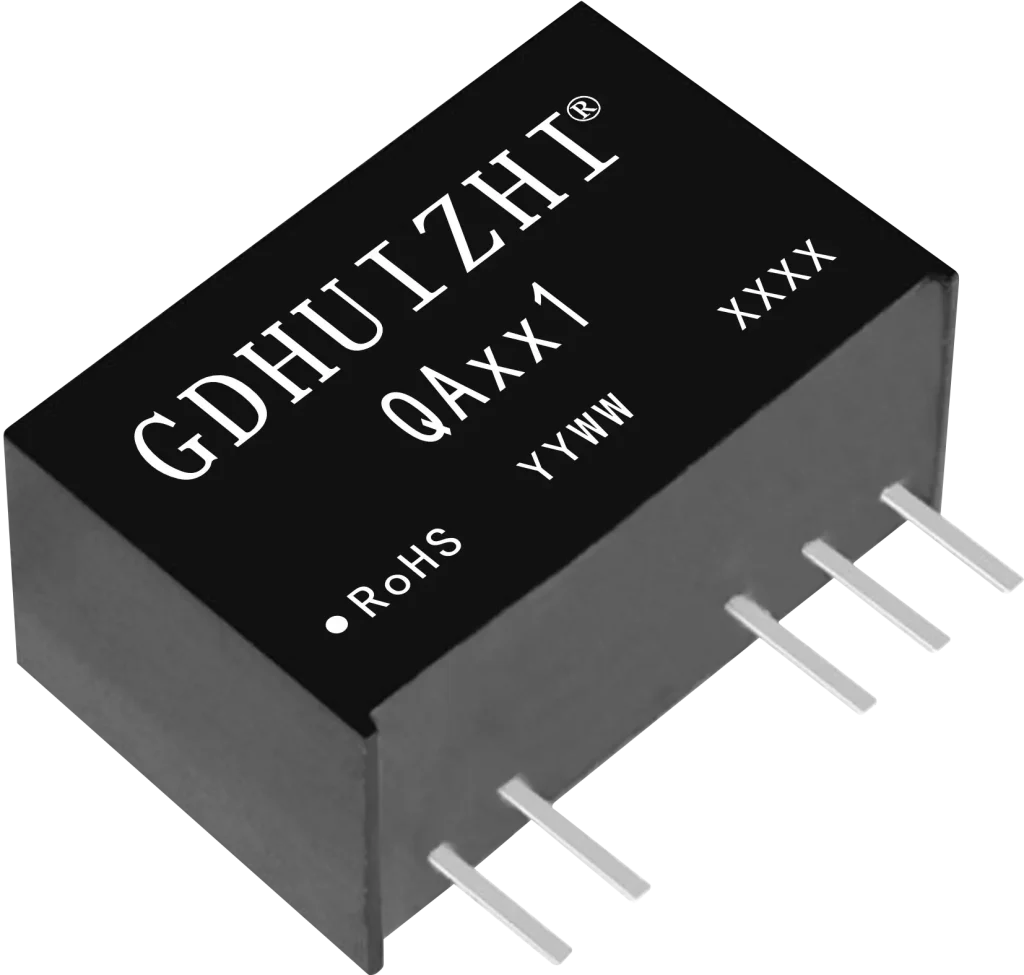

QAxx1

This series of DC-DC power module is specifically designed for IGBT drivers, and it uses an asymmetric voltage output internally to minimize the IGBT driver loss as much as possible.

1. Isolation voltage: 3000 VAC
2. Compact SIP package，plastic housing
3. Output short-circuit protection，automatic recovery

QAxx1 series

Model No.Power(W)Isolation
Vol.(VAC)		Input Voltage(VAC)Output Voltage(VDC)Dimension(mm)PackageDatasheet
QA121-300012（11.4-12.6）±15/-8.019.50*9.80*12.50SIP图片描述
QA151-300015（14.25-15.75）±15/-8.019.50*9.80*12.50SIP图片描述
QA241-300024（22.8-25.2）±15/-8.019.50*9.80*12.50SIP图片描述
