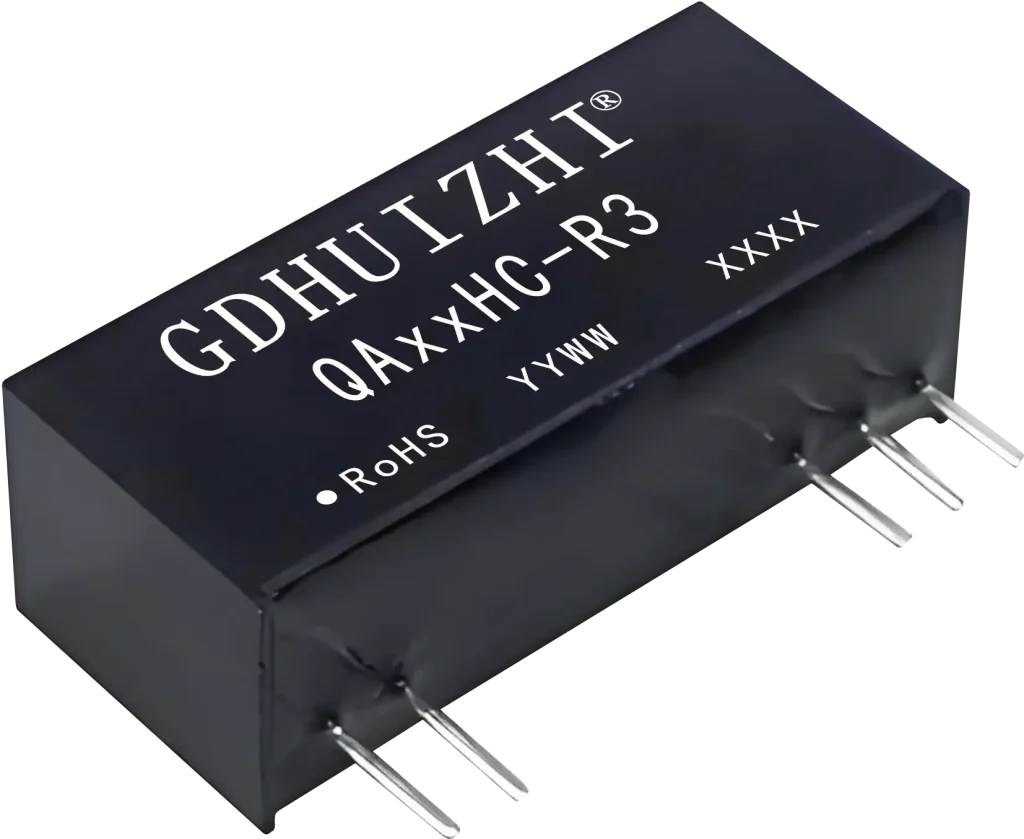

QAxxHC-R3
This series of DC-DC power module is specifically designed for SiC drivers, and it uses an asymmetric voltage output internally to minimize the SiC driver loss as much as possible.
1. Isolation voltage: 5000 VAC
2. Compact SIP package，plastic housing
3. Output short-circuit protection，automatic recovery
QAxxHC-R3 series
| Model No. | Power(W) | Isolation Vol.(VAC) | Input Voltage(VAC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| QA123HC-1504R3 | - | 5000 | 12（10.8-13.2） | +15/-4 | 27.40*9.50*12.00 | SIP |  |
| QA153HC-1504R3 | - | 5000 | 15（13.5-16.5） | +15/-4 | 27.40*9.50*12.00 | SIP | |
| QA243HC-1504R3 | - | 5000 | 24（21.6-26.4） | +15/-4 | 27.40*9.50*12.00 | SIP | |
| QA123HC-2005R3 | - | 5000 | 12（10.8-13.2） | +20/-5 | 27.40*9.50*12.00 | SIP | |
| QA153HC-2005R3 | - | 5000 | 15（13.5-16.5） | +20/-5 | 27.40*9.50*12.00 | SIP | |
| QA243HC-2005R3 | - | 5000 | 24（21.6-26.4） | +20/-5 | 27.40*9.50*12.00 | SIP | |
