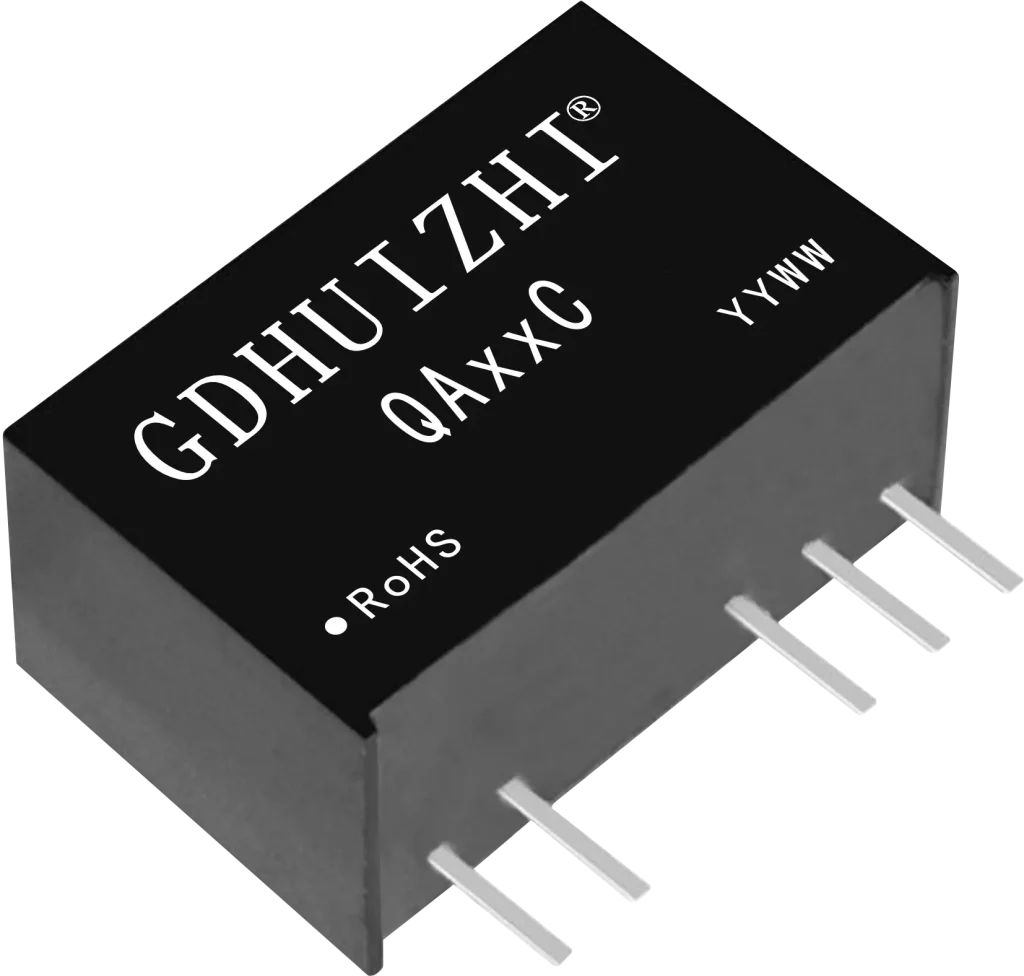

QAxCx
This series of DC-DC power module is specifically designed for SiC drivers, and it uses an asymmetric voltage output internally to minimize the SiC driver loss as much as possible.
1. Isolation voltage: 3500 VAC
2. Compact SIP package，plastic housing
3. Output short-circuit protection，automatic recovery
QAxCx series
| Model No. | Power(W) | Isolation Vol.(VAC) | Input Voltage(VAC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| QA01C | - | 3500 | 15（13.5-16.5） | ±20/-4 | 19.50*9.80*12.50 | SIP |  |
| QA01C-18 | - | 3500 | 15（13.5-16.5） | ±18/-3 | 19.50*9.80*12.50 | SIP | |
| QA051C | - | 3500 | 5（4.5-5.5） | ±20/-5 | 19.50*9.80*12.50 | SIP | |
| QA151C | - | 3500 | 15（13.5-16.5） | ±20/-5 | 19.50*9.80*12.50 | SIP | |
| QA121C2 | - | 3500 | 12（10.8-13.2） | ±15/-3.5 | 19.50*9.80*12.50 | SIP | |
| QA121C-20 | - | 3500 | 12（10.8-13.2） | ±20/-5 | 19.50*9.80*12.50 | SIP | |
| QA151C3 | - | 3500 | 15（13.5-16.5） | ±15/-4 | 19.50*9.80*12.50 | SIP | |
| QA1201C-20 | - | 3500 | 12（10.8-13.2） | ±20/-4 | 19.50*9.80*12.50 | SIP | |
| QA2401C-20 | - | 3500 | 24（21.6-26.4） | ±20/-4 | 19.50*9.80*12.50 | SIP | |
