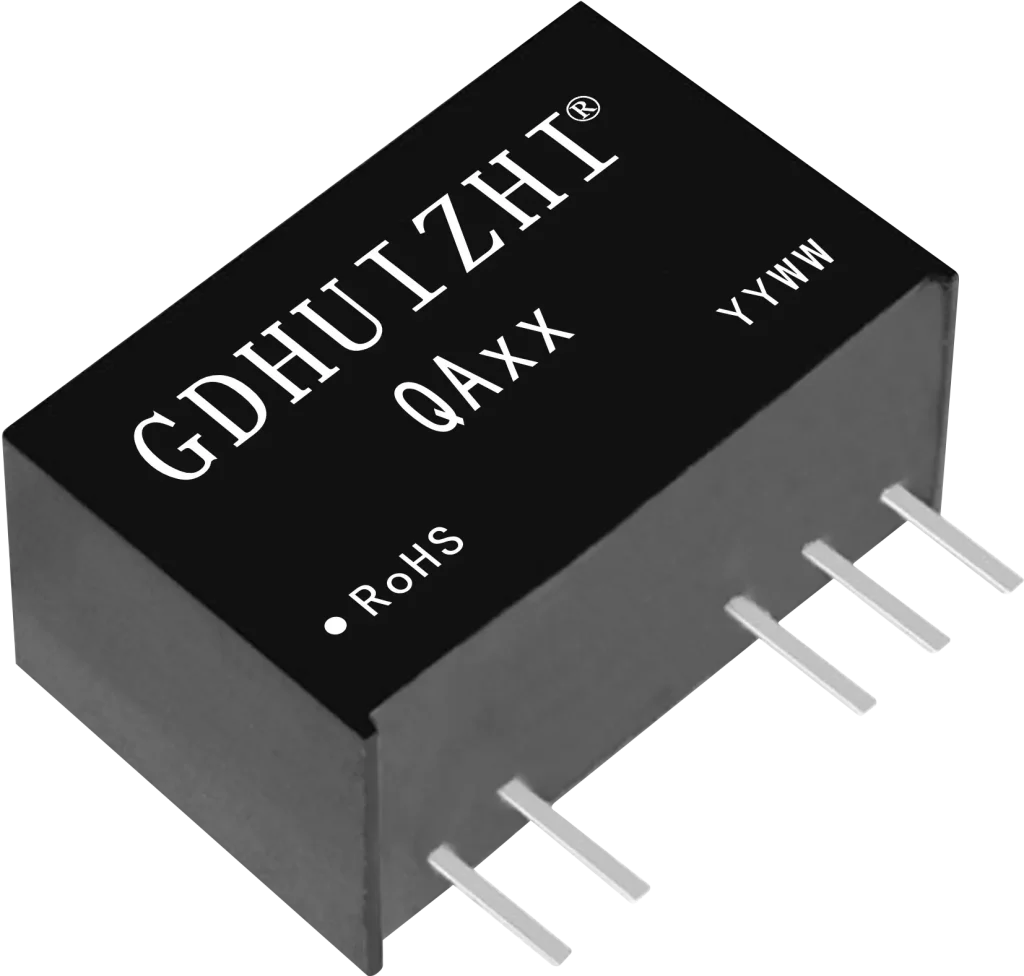

QAxx
This series of DC-DC power module is specifically designed for IGBT drivers, and it uses an asymmetric voltage output internally to minimize the IGBT driver loss as much as possible.
1. Isolation voltage: 3000 VAC
2. Compact SIP package，plastic housing
3. Output short-circuit protection，automatic recovery
QAxx series
| Model No. | Power(W) | Isolation Vol.(VAC) | Input Voltage(VAC) | Output Voltage(VDC) | Dimension(mm) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| QA01 | - | 3000 | 15（14.5-15.5） | ±15/-8.7 | 19.50*9.80*12.50 | SIP |  |
| QA01-09 | - | 3000 | 15（14.5-15.5） | ±9/- | 19.50*9.80*12.50 | SIP | |
| QA01-A09 | - | 3000 | 15（14.5-15.5） | ±9.0/-9.0 | 19.50*9.80*12.50 | SIP | |
| QA01-17 | - | 3000 | 15（14.5-15.5） | ±17/-8.7 | 19.50*9.80*12.50 | SIP | |
| QA02 | - | 3000 | 12（11.6-12.4） | ±15/-8.7 | 19.50*9.80*12.50 | SIP | |
| QA03 | - | 3000 | 24（23.3-24.7） | ±15/-8.7 | 19.50*9.80*12.50 | SIP | |
| QA04 | - | 3000 | 12（9-15） | ±15/-8.0 | 19.50*9.80*12.50 | SIP | |
